    Modular Online CEMS Continuous Emission Monitoring System For SO2 NO NO2 CO CO2 Gas Analyzer

    Ask Lasest Price
    Brand Name : JUGE
    Model Number : AG-CEMS07 II
    Certification : IOS9001, CE
    Price : USD20000-50000
    Delivery Time : 5-8 working days
    Payment Terms : Online order,T/T
    Supply Ability : 100 Unit/Week
    • Product Details
    • Company Profile

    Modular Online CEMS Continuous Emission Monitoring System For SO2 NO NO2 CO CO2 Gas Analyzer

    Modular Online CEMS Continuous Emission Monitoring System For SO2 NO NO2 CO CO2 Gas Analyzer


    >>Overview

    It can monitor the real-time concentration of particulate matter and gaseous pollutants in the flue gas emitted from stationary pollution sources (such as boilers, industrialfurnaces, incinerators, etc.), enabling supervision of production and emissions fromthe source.

    CEMS (Continuous Emission Monitoring System) generally consists of three basic components: the gaseous pollutant monitoring unit (SO2, NO, NO2), the flue gas parameter monitoring unit (temperature, pressure, flow rate, O2, humidity), and the data acquisition and processing unit.

    The sample gas passes through a high-temperature heated pipeline, undergoes dustremoval via atwo-stage filter,and is dehumidified by a two-stage condensation system before directly entering the gas chamber of the analyzer. The gas chamber ishoused within the analyzer and connected to an ultraviolet differential analyzer via ultraviolet optical fibers, achieving accurate measurement of the flue gas.


    >>Feature
    1) Secondary condensation for rapid water removal, reducing SO2 loss.
    2) Long-life UV xenon lamp with high wavelength resolution ensures low detection limits, minimal temperature drift, fast response time, and accurate measurements.
    3) PLC-controlled with adjustable parameters to adapt to complex working conditions.
    4) Intelligent system design with traceable fault alarms for easy maintenance and troubleshooting.
    5) Fully modular design, enabling flexible expansion of monitoring factors.
    6) Flexible configuration: Users can choose between an NO2-NO converter or direct NO measurement as required.

    >>Main technical parameters
    ProjectIndex
    Gaseous pollutantSo2(0~200) mg/m3, the range can be customized
    No(0~200) mg/m3, the range can be customized
    No2(0~200) mg/m3, the range can be customized
    O2(0~25)%
    Repetitiveness≤2%
    24h zero drift and range drift≤±2%f.s.
    One-week zero-point drift and range drift≤±3%f.s.
    Linear error≤±2%f.s.
    Response time≤120s
    Particulate matterMeasured range(0.5~15)m
    Dust concentration range(0~10) mg/m3, the range can be customized
    Accuracy≤±2%f.s./24h
    Flue gas parametersTemperatureMeasuring range(0~300) ºC, is customizable
    Accuracy
    PressureMeasuring range(-10~10)kpa
    Accuracy
    Velocity of flowMeasuring range(0~40) m/s, (0~2) kpa, the output is optional
    Accuracy
    HumidityMeasuring range(0~40)vol%
    Accuracy
    Data acquisition and processingData transmission module8-way analog input
    1-channel rs485 communication interface
    IPC6-way rs232 communication interface
    Windows7 operating system
    Operational softwareFlue gas emission monitoring software monitor
    Power SupplyAc 220v,50hz,≤7kw

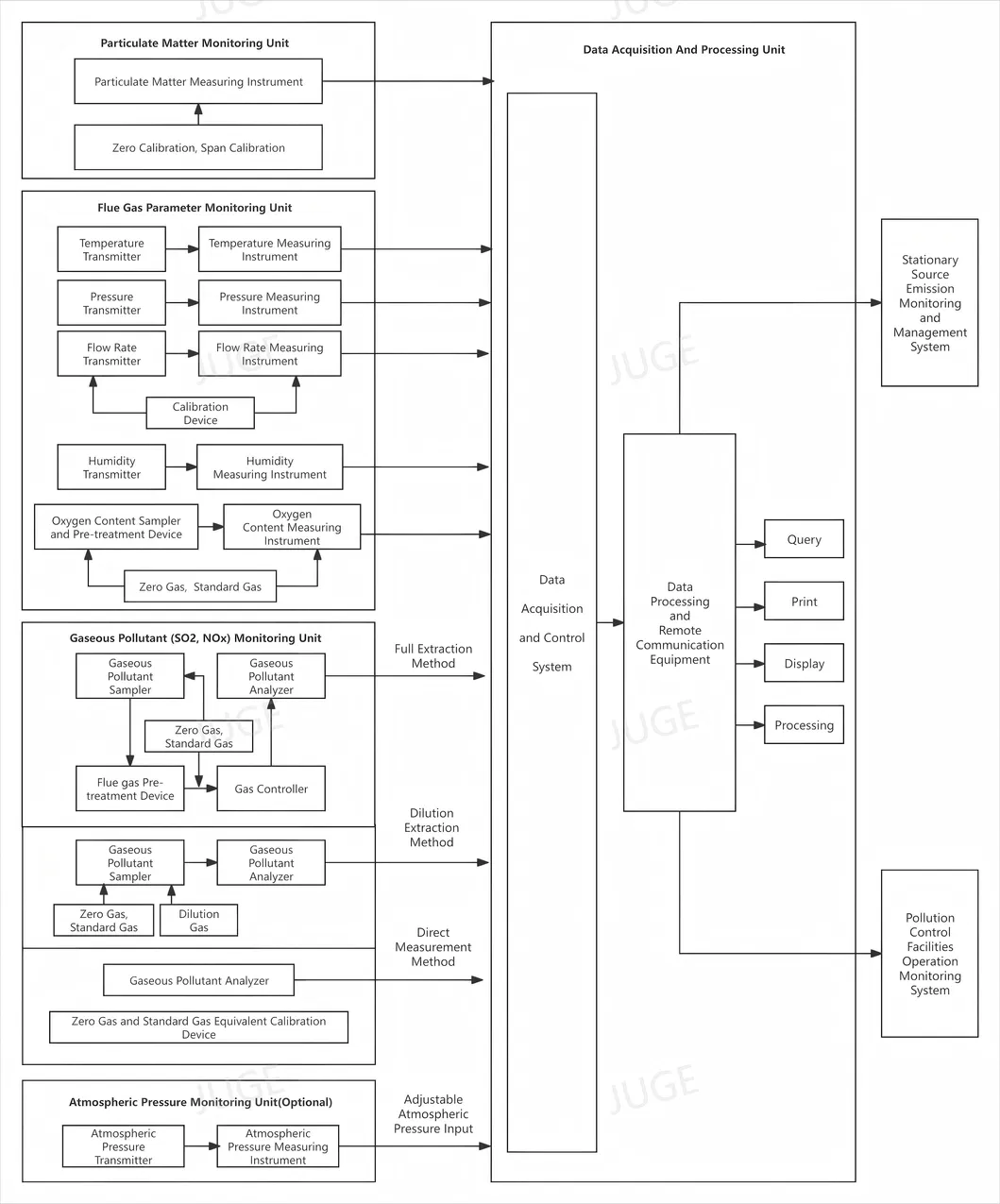

    >>System composition
    Cems Online So2 No No2 Continuous Emission Monitoring System Flue Gas Analyzer
    Cems Online So2 No No2 Continuous Emission Monitoring System Flue Gas Analyzer
